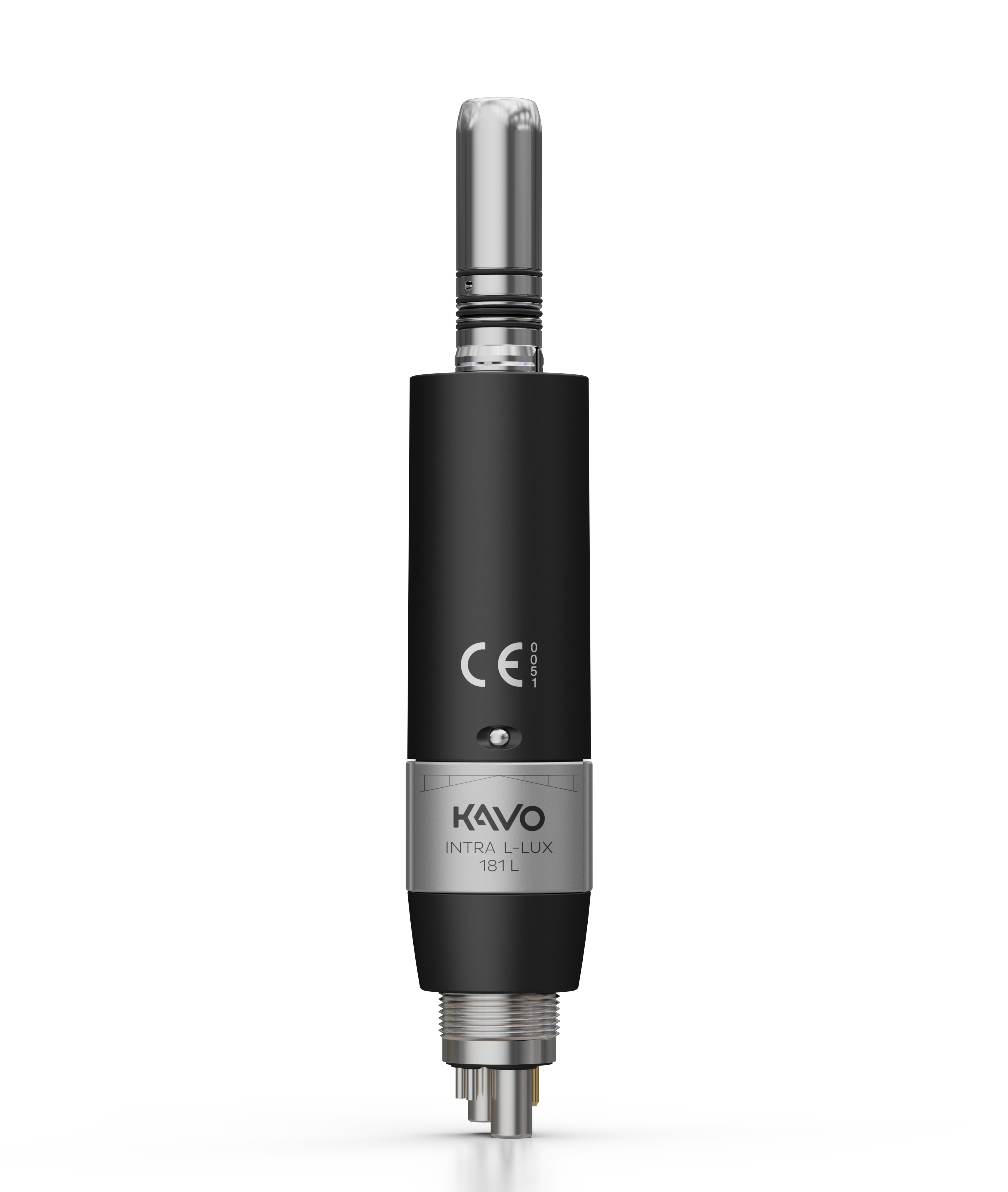

KaVo INTRAmatic LUX 181 L

Technical Specs:

• Operating speed: 5,000 to 20,000 rpm

• Drive pressure: 2.2 to 2.7 bar (32 to 39 psi)

• Return air pressure: < 1.1 bar (16 psi)

• Spray water pressure: 0.8 to 2.5 bar (12 to 36 psi)

• Spray air pressure: 1.0 to 4.0 bar (15 to 58 psi)

• Air consumption: up to 60 Nl/min

• Idle torque: 2.3 Ncm at 2.2 bar (32 psi)

• Connector: 4-hole standard connector in accordance with DIN EN ISO 9168 type 3

• Can be attached: Straight and contra-angle handpieces with INTRAmatic connection

Air requirements:

• Air quality in accordance with DIN EN ISO 7494-2 dry, oil-free, dirt-free, non-contaminated

• Air filter, supplied by customer < 20 μm

Water requirements:

• Water quality in accordance with DIN EN ISO 7494-2 Tap water pH 7.2 – 7.8

• Water filter, supplied by customer < 80 μm
