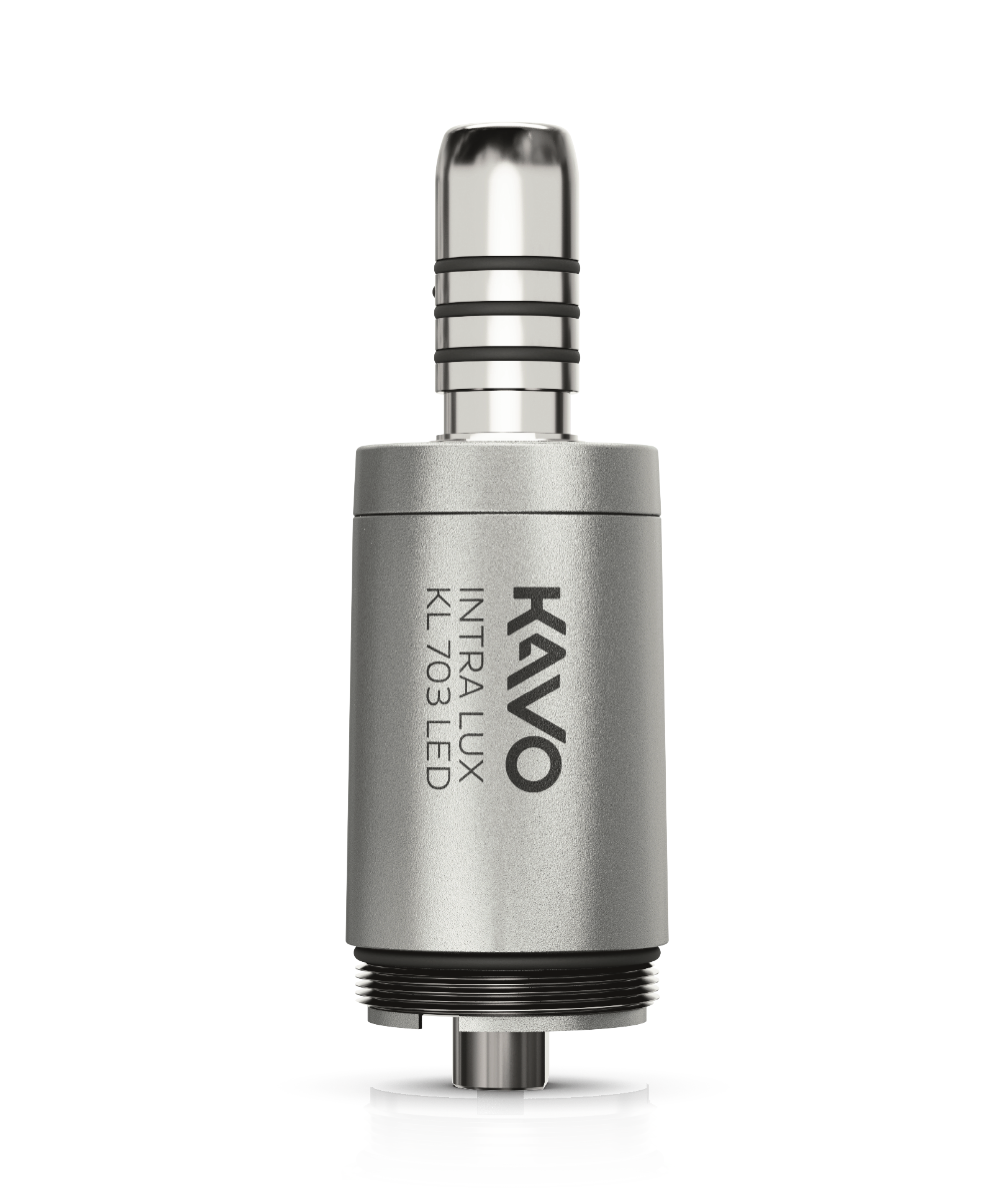

KaVo INTRA LUX Motor KL 703 LED

Technical Specs:

• Can be combined with: ▪ ESTETICA E80 ▪ ESTETICA E70 ▪ ESTETICA E50 ▪ ESTETICA E50 Life ▪ ESTETICA E30 ▪ ESTETICA 1065 ▪ ESTETICA 1066 ▪ Primus 1058 ▪ Primus 1058 Life ▪ Status 1080 ▪ Globus 1078 ▪ Dental simulation unit ▪ ELECTROtorque

• Motor voltage rating: 22 V AC

• Motor current: max 4 A

• Motor speed rating: 40,000 rpm

• Motor torque rating: 3 Ncm

• Connector: Straight and contra-angle handpieces with INTRAmatic connection

Media supply at motor intake:

• Cooling air (system pressure): max. 5.0 bar (73 psi)

• Amount of cooling air at motor intake: 20 ± 2 NL/min

• Spray air pressure: 1.0 to 2.5 bar (15 to 36 psi)

• Spray water pressure: 0.8 to 2.0 bar (12 to 29 psi)

Media exit at instrument coupling:

• Cooling air exit at instrument coupling: 7.5 ± 1.5 NL/min

• Spray air flow rate: 3.5 + 2 NL/min at 1.0 bar (15 psi)

• Spray water flow rate: > 75 ml/min at 0.8 bar (12 psi)

Air requirements:

• Air quality in accordance with DIN EN ISO 7494-2 dry, oil-free, dirt-free, non-contaminated

• Air filter, supplied by customer < 20 μm

Water requirements:

• Water quality in accordance with DIN EN ISO 7494-2 Tap water pH 7.2 – 7.8

• Water filter, supplied by customer < 80 μm
